RE-501 5L Rotary Evaporator

Contact us for a free quote

Description

Product Description

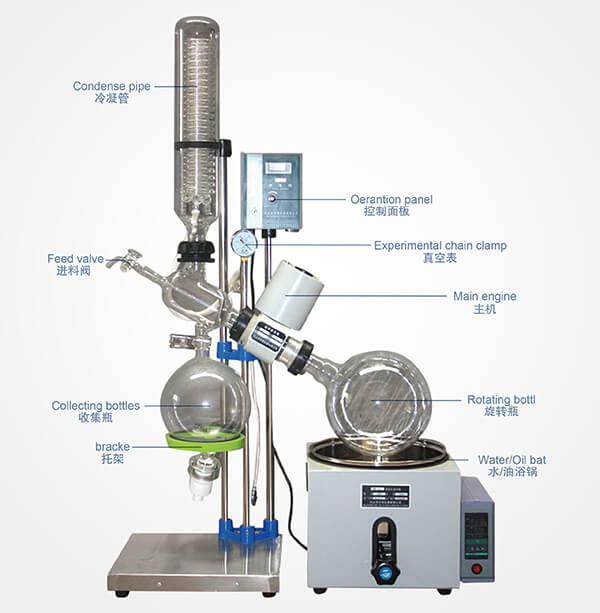

RE-501 5L Rotary Evaporator
RE-501 5L Rotary Evaporator

The RE-501 5L Rotary Evaporator’s maximum capacity is 5000ml, the rotating speed is 5-120r.p.m, and the motor power is 40W. The RE-501 5L Rotary Evaporator is the basis of Lanphan’s existing rotary evaporators. It has a manual lifting handle, a self-developed machinery and a well designed glass component. The location of the glass component can be accurately set. The digital display of the rotating speed and the heating kettle’s temperature can help optimize and control all distillation processes. The new type of fixing mechanism greatly simplifies the operation process of changing the evaporating flask.

The rotary evaporator, also known as rotavap or rotovap, is a common lab instrument used in chemical laboratory. It’s mainly adopted to distill a large amount of volatile solvents continuously under the negative pressure. It is capable of separating and purifying reaction products especially for the concentration of liquid extract and distillation of receiving fluid during the chromatographic separation. As the evaporator is vacuumized, the boiling point of the solvent to be distilled decreases. In general, the component distilled from the sample is the target component in the chemical research, such as extracting some natural component from organic synthesis sample. Generally, the rotary evaporator is used to separate components with low boiling points, such as ethane and ehtyl acetate, which are liquids at room temperature and normal pressure. Furthermore, some component in the sample can be removed through standard operation.

Product Parameters

Basic ParametersTypeRE-501
Glass MaterialGG-17
Support Materialstainless steel
Shell MaterialAntisepsis Plastic Spraying 310*320*240mm
Inner Container Materialstainless steel 280*170mm
Baseboard Size350*330mm
Rotary evaporator flask5L ¢50 flange aperture
Volume of Recycling Bottle3L 35# ground aperture
Vacuum Degree0.098Mpa
Rotating Power40W
Rotating Speed0-120rpm
Heating Power2KW
Temperature Control Range of Bath Kettle400℃
Temperature Accuracy±1℃
Voltage/Frequency (V/Hz)220V/50Hz
Up and Down Distance120mm
Shape Size(mm*mm*mm)700*335*1009mm
Package Size(mm*mm*mm)1040*620*410 0.26 m³
Package Weight (KG)38
Functional  ConfigurationSpeed Adjustment ModeElectrodeless Speed Regulation
Rotate Speed Display ModeDigital Display
Temperature Display ModeDigital Display K Type Sensor
Temperature Control ModeSmart Temperature Control
Sealing ModePTFE Sealing
Evaporator CondenserVertical Condenser 100*510mm 29#Standard Aperture
Up and Down ModeManual Up and Down of Bath Kettle
Continuous ChargingStandard Aperture Feeding Valve
Vacuum Display ModeVacuum Meter
Optional EquippingAnti-splash DeviceEquipping Transparent Cover of Bath Kettle
Anti-explosionAnti-explosion Frequency Changer, Anti-explosion Dynamo EX40We
Frame PartPlastic Spraying or PTFE Spraying
Our company’s laboratory glass and laboratory instruments are independent research and development, which are available for custom-made according to client requirements.

Product Parts

There is a PTFE jacket among the glass of standard mouth, preventing the glass grinding mouth from being damaged. It’s convenient to install and dismantle, and easy to clean.

PTFE Jacket
PTFE Jacket

Heating kettle’s operation button possesses the function of temperature locking, which is convenient to easily control experimental temperature. The dry burning prevention function and safety temperature loop are possessed as well.

Water Bath
Water Bath

The digital display of both rotating speed and heating temperature makes it easy to observe every parameter. The main engine can be lifted and lowered manually.

Monito
Monitor

High efficient vertical condensing glass assembly is equipped, which makes the condensation area touch 1500cm², and the recovery rate approach 100% with a fast condensation speed of the solvent.

Condenser Tube
Condenser Tube



certification
certification

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.
