Description

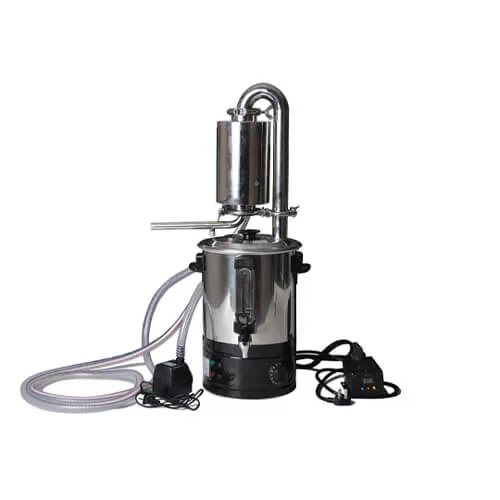

An essential oil extractor refers to an apparatus for extracting essential oil and pure dew. There are mainly two types of essential oil extractors in terms of different materials, which are stainless steel essential oil extractors and glass essential oil extractors. But both of them extract pure dew and essential oil by the method of steam distillation. The stainless steel essential oil extractor will be introduced in detail as follows.

Adopting stainless steel material, the product extracts pure dew and essential oil by the method of steam distillation. It can extract essential oil rapidly in 10 minutes, whose oil extraction rate is greater than 99%. The capacity is from 10L to 55L, so the water volume can be from 1.5L to 32.5L, and the volume of herbal medicine, flowers, grasses, trees or other plants can be from 0.5L to 17.5L. The raw materials including insect repellent and heavy metal, a stainless steel distiller can remove them in a planned way by utilizing existing technology. Thus, the extracted essential oil and pure dew can maintain excellent quality, conforming to the national standard. With a high extraction efficiency, a stainless steel distiller can produce 0.5-40L pure dew every day when it runs all day by 50 minutes production cycle. The yields of essential oil vary in terms of different plants. The product can be used not only at home, but in other places, such as beauty salon, SPA center, garden nursery, laboratory and botanical garden.

Product Features

1. Heat and high temperature resistance.
2. Excellent air-tightness.
3. Energy conservation and safety.
4. Sturdy material.
5. Quick oil production and high efficiency.
6. It’s easy to clean without flavor.

Product Accessories

A material tank(with the heating), a condenser(use water for cooling), a stainless steel tube, a separator(glass material), several flange buckles.

Working Principle

There are mainly three working principles:

1. Steam Distillation Method: It is one of the most widely used methods because of simple device, easy operation and low cost. However, the relatively high operation temperature will cause the decomposition and hydrolysis of heat sensitive material in essential oil, and it’s required to remove moisture in the the extracted essential oil firstly. It’s complicated.
2.  Solvent Extraction Method: It refers to extract ingredients in plant materials by volatile organic solvents, whose productions are extract, tincture and other components. But the organic solvent extraction may cause residual solvent, with a long extraction time and relatively low efficiency.
3. Expression Method: It means to crush and press raw materials, and squeeze volatile oils from plant tissues. Then leave them to separate into layers, and use a centrifuge to extract essential oils. The essential oils produced by the expression method can possess a high quality and keep the original fragrance. The most essential oils used for food and makeup in foreign countries are produced by cold pressing.

Product Advantages

1. One key operation and no human operation are time saving and reliable.
2. It can extract essential oil rapidly in 10 minutes, whose oil extraction rate is greater than 99%. The production cycle is 50 minutes.

Product Parameters

The product is suitable for extracting pure dew and essential oil. It can extract essential oil rapidly in 10 minutes, whose oil extraction rate is greater than 99%. The capacity is from 10L to 55L, so the water volume can be from 1.5L to 32.5L, and the volume of herbal medicine, flowers, grasses, trees or other plants can be from 0.5L to 17.5L. The raw materials including insect repellent and heavy metal, a stainless steel distiller can remove them in a planned way by utilizing existing technology. Thus, the extracted essential oil and pure dew can maintain excellent quality, conforming to the national standard. With a high extraction efficiency, a stainless steel distiller can produce 0.5-40L pure dew every day when it runs all day by 50 minutes production cycle. The yields of essential oil vary in terms of different plants.

Model	Voltage/V	Maximum Power/W	Package Dimension/cm	Weight/kg	Diameter of Material Tank/cm	Total Height/cm	Material Filling Quantity/kg	Pure Dew Quantity/kg
10L	220-240	2500	67*35*50	12	25	70	1.5	2.5
21L	220-240	2500	67*35*50	13	30	80	2.5	6
32L	220-240	3000	85*45*55	18	35	85	5	12.5
55L	220-240	3000	90*50*65	22	40	105	10	25
The product is made of stainless steel material. The material filling and pure dew quantities are maximum value, but the actual value is equal or less than this value.

Product Application

The product can be used not only at home, but in other places, such as beauty salon, SPA center, garden nursery, laboratory and botanical garden.

Product Usage

1.Remove the lid of the distillation tank. Then put in appropriate amount of plants and water in terms of the machine model and the corresponding instruction and cover the lid.

2.Connect the condensate pipe, put the water circulation pump into the cold water basin,plug in the power supply of the circulation pump and start the water circulation pump. The condensing system starts up.

3.Plug in the power supply of distillation and press the start button. The heating and the extraction process begin. The steam can form by water evaporation, which can extract the active ingredient when it is in contact with plants. The active ingredient will escape to the condenser along with water steam, where it liquefies. Then the liquefied ingredient flows into the separator from the outlet for essential oil and pure dew to complete the separation of essential oil and pure dew.

4.After extraction, pour out the residual materials and clean the device for next extraction.
