Product Description

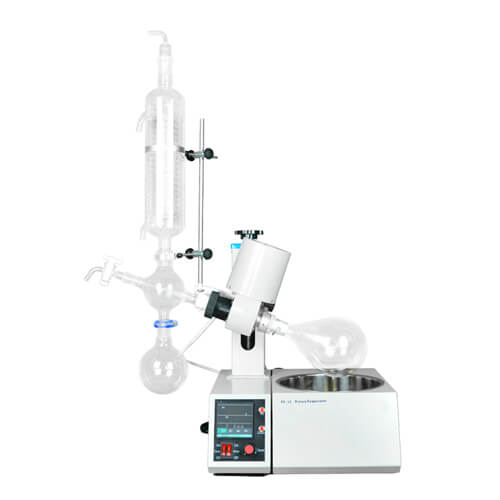

The chemical supply equipment RE-52C 1L rotary evaporator’s maximum capacity is 2000ml, rotate speed is 5-120r.p.m, motor power is 25W. RE-52C rotary evaporator uses micro-motor to change speed, its main engine can go up and down by manual or electric means. Used rotary evaporator can rotate to form thin film and efficiently evaporation under thermostat heating and negative pressure, then cooling recycle the solvent, it is especially suitable for heat reactive material’s crystallization, separation and solvent recovery.

Product Parts

Intelligent digital display lifting water and oil universal bath, stainless steel one-time forming liner without welding, annular heating tube heating evenly, heating rate is fast.

The digital display of rotor speed and the temperature of the heating pot makes the parameters information clear at a glance.The main engine can be raised or lowered by manual or electric.

Use lead screw up and down, hand wheel rotating makes main engine up and down.

Borosilicate glass one – time forming high efficiency serpentine condensing tube, good condensing effect and high recovery.

Product Parameters

Basic Parameter	Type	RE-52C
	Glass Material	GG-17
	Support Material	Antisepsis Plastic Spraying
	Shell Material	Antisepsis Plastic Spraying 250*365*150mm
	Inner Container Material	stainless steel 240*120mm
	Volume of Rotary Bottle	1L 24# Standard Aperture
	Volume of Recycling Bottle	0.5L 24# Standard Aperture
	Vacuum Degree	0.098Mpa
	Rotating Power	30W Brushless Electric Machine
	Rotating Speed	0-120rpm
	Heating Power	1KW
	Temperature Control Range of Bath Kettle	0-99℃
	Temperature Accuracy	±1℃
	Voltage/Frequency (V/Hz)	220V/50Hz
	Up and Down Distance	120mm
	Shape Size(mm*mm*mm)	770*440*1005
	Package Size(mm*mm*mm)	590*460*440 0.12m³
	Package Weight (KG)	21
Function Allocation	Speed Adjustment Mode	Electrodeless Speed Regulation
	Temperature Display Mode	Digital Display CU50 Type Sensor
	Temperature Control Mode	Smart Temperature Control
	Sealing Mode	PTFE Sealing
	Condenser	Vertical Condenser 85*460mm 29#Standard Aperture
	Up and Down Mode	Manual Up and Down of Main Engine
	Continuous Charging	19# Standard Aperture Feeding Valve
Optional Equipping	Anti-splash Device	Equipping Transparent Cover of Bath Kettle
	Temperature Control Range of Bath Kettle	0-400℃
Our company’s laboratory glass and laboratory instruments are independent research and development, which are available for custom-made according to client requirements.

Packing List

Machine Part		Glass Part
Head with the motor	1 set	Rotary Bottle	1 pc
Host	1 unit	Recycling bottle	1 pc
Control box	1 pc	Condenser	1 pc
Bath pot	1 unit	19# feeding valve	1 pc
Recycling bottle clamp	1 pc	Adapter	1 pc
PTFE Tube	1 pc	Glass Shaft	1 pc
Heating wire	1 pc
Fasten Screw	1 pc
PTFE Flask remover	1 pc
Nut with pad	2 sets
Spare Parts
Operation Manual	1 pc	10A fuse	2 pcs
Warranty Card	1 pc	Sealing gasket	1 pc
Quality Certificate	1 pc	Packing List	1 pc
