Description
Product Description

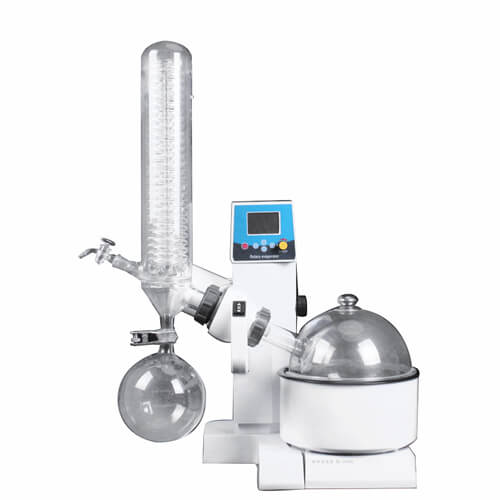

RE-3000E 3L rotary evaporator is a newly designed new generation smart rotary evaporator, digital display of temperature, control part use high-performance single chip as main control chip, adopt special control program according to controlled member, beauty in appearance and stable in property. Besides, it has reserved updating connector, which can update software to meet client requirements.
Product Parts
High-efficiency double condenser to ensure the high recovery rate.
Product Parameters
| Basic Parameter | Model | RE-3000E |
| Glass Material | GG-17 | |
| Support Material | Aluminium Alloy | |
| Inner Container Material | Aluminium alloy+Teflon recombination pot, whole sealing heating, 250*130mm | |
| Rotary Bottle Volume | 3L ¢50 flange port | |
| Receiving Flask Volume | 2L 35# ball milling port | |
| Rotary Power | 40W Brushless Electric Machine | |
| Rotary Speed | 0-180rpm | |
| Heating Power | 1.5KW | |
| Bath Kettle Temp. Control Range | 0-99℃ | |
| Temp. Control Accuracy | ±1℃ | |
| Lifting Power | 15W | |
| Lifting Stroke | 120mm | |
| Voltage/Frequency (V/Hz) | 220V/50Hz | |
| Overall Dimension (mm*mm*mm) | 660*420*830 | |
| Package Dimension (mm*mm*mm) | 630*560*540 0.19m³ | |
| Package Weight (KG) | 30 | |
| Functional Configuration | Electronic Stepless Speed Regulation Display Mode | Liquid Crystal Display |
| Temperature Display Mode | PT100 Sensor digital display | |
| Temperature Control Method | Intelligent Temperature Control | |
| Sealing Mode | Bothway sealing by Teflon+Fluorine Rubber | |
| Lifting Mode | Automatic rising-lowering of main engine | |
| Condenser | Vertical type condenser 100*510mm | |
| Continuous Charging | 19# charging valve | |
| Optional Configuration | Splash-Proof Device | Matching transparency cover is optional |
| Our company’s laboratory glass and laboratory instruments are independent research and development, which are available for custom-made according to client requirements. | ||
Packing List
| Machine Part | Glass Part | ||
| Nose | 1 set | Rotary bottle | 1 unit |
| Floor shelf | 1 set | Recycling bottle | 1 unit |
| Aluminum Backing Ring of Assistant Condenser | 1 unit | Main condenser | 1 unit |
| Vacuum meter | 1 pc | Air conduction bottle | 1 unit |
| Rotary nut | 1 set | Feeding Valve | 1 unit |
| Assistant condenser nut | 1 set | ¢60 flange tap | 1 unit |
| PTFE sealed joint sleeve | 1 set | 24# vent valve | 2 units |
| PTFE feeding valve with flange plate | 1 set | 19# vent valve | 1 unit |
| Check valve | 1 set | Rotary shaft | 1 unit |
| Aluminum Backing Ring of recycling bottle | 1 unit | Assistant Condenser | 1 unit |
| ¢60F4 pad | 3 units | ||
| ¢80F4 pad | 1 unit | ||
| Big black hat | 3.5 sets | ||
| Transducer | 1 set | ||
| Water bath kettle | 1 unit | ||
| Condenser pipe clamp | 1 unit | ||
| The final interpretation of this operation manual is reserved by our company. If any change in product, please be subject to the real product. The operation manual will not be changed. | |||
