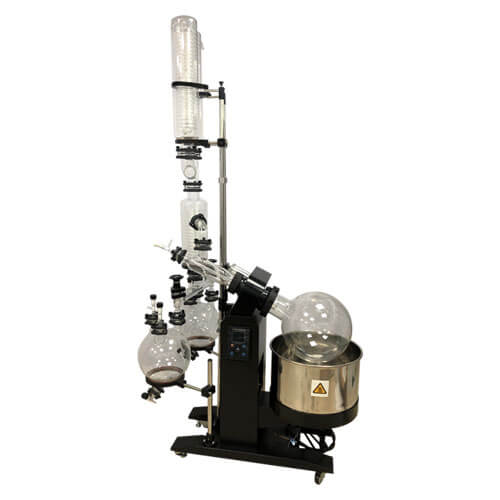

R-1020 20L Electric Lift Rotary Evaporator

Contact us for a free quote

Description

Product Parameters

Model R-1010 R-1020 R-1030 R-1050
Rotary Flask   10L φ95mm
(Flange mouth)
  20L φ125mm
(Flange mouth)
  30L φ125mm
(Flange mouth)
  50L φ125mm
(Flange mouth)
Receiving Flask 5L*2Pcs 10L*2Pcs 20L*2Pcs 20L*2Pcs
Rotary Speed 20~120r/min 20~120r/min 20~900r/min 20~900r/min
Rotary Motor 250W
Condenser 2Pcs*Main Condenser+Assistant Condenser
Heating Bath Stainless Steel Water/oil Bath
Temp.Range Water:RT~99℃  Oil:RT~200℃,±0.1℃
Attainable Vacuum ≤0.1Mpa(1Bar,750Torr)
Evaporative Power H2O≥3.2L/h, Alcohol≥6.5L/h H2O≥5L/h,  Alcohol≥11L/h H2O≥7L/h, Alcohol≥15.3L/h H2O≥9L/h, Alcohol≥19L/h
Lift Type Electric Lift
Lifting Stroke 0~200mm 0~200mm 0~200mm 0~200mm
Bath Power 3KW 3KW 6KW 6KW
Voltage 220V/60Hz,1-Phase

certification
certification

Packing and Shipping
Packing and Shipping

Pre-Sale Service

  1. Provide 24-hour technical consultation and reply;
  2. Provide professional quotation information;
  3. Provide detailed product performance specification;
  4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
  5. Provide other corollary equipment according to client requirements.

In-Sale Service

  1. With supervision from the source of products, the qualified rate of raw materials entering the factory can reach 100%;
  2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach100%;
  3. Provide product’s inspection record of key junctures to customers;
  4. Provide production schedule photos to customers at regular intervals;
  5. Package and transport of products are in strictaccordance with the export standard;
  6. Provide transportation schedule information to clients timely.

After-Sale Service

  1. Provide targeted installation video;
  2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
  3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
  4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
  5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
  6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
  7. Provide assistance in solving problems such as equipment damage in the transport.
