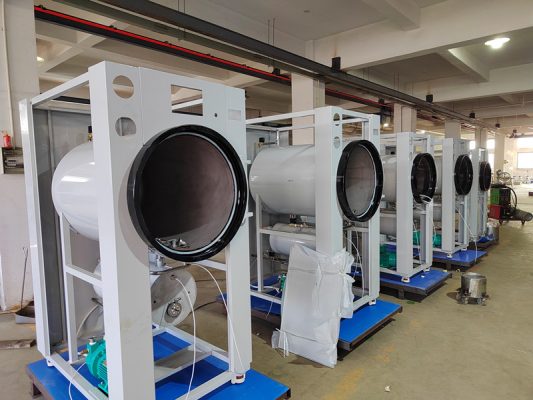

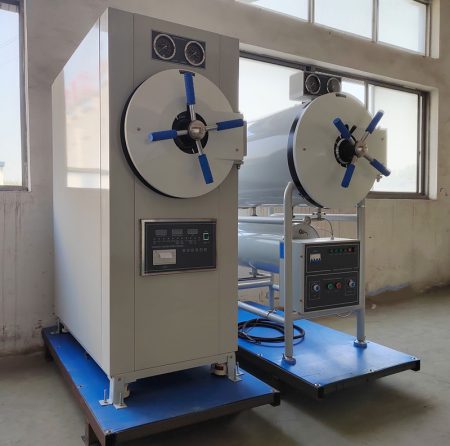

Horizontal Type Autoclave Sterilizer - Ethanol extraction CBD technology equipment

Description

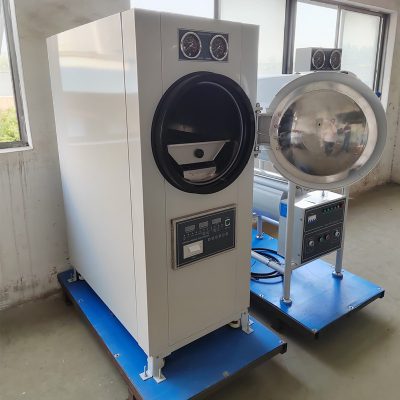

LPWS-YDA Autoclave Sterilizer

Sterilizing course automatic sterilization controlled,easy to operate.

With drying function,suitable dressing drying.

With over-temperature,over-pressure auto-protect device.

The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the door doesn’t close well.

The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting.

The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

The chamber of the sterilizer is made of stainless steel.

Technical data	LPWS-150YDA	LPWS-200YDA			LPWS-280YDA		LPWS-400YDA	LPWS-500YDA
Sterilizing chamber volume	150L φ440×1000mm	200L φ515×1000mm			280L φ600×1000mm		400L Φ700×1100mm	500L Φ700×1300mm
working pressure	0.22MPa
working temperature	134℃
Adjustment of temperature	105℃ – 134℃
Time of sterilization	0-60 min
Time of drying	0-60 min
Heat average	≤±2℃
Power	9KW/380V 50Hz		9KW/380V 50Hz	12KW/380V 50Hz		18KW/380V 50Hz			18KW/380V 50Hz
Dimension	1400×600×1300		1400×670×1650	1400×770×1780		1430×880×1830			1800×900×1820
Transport dimension	1550×750×1850		1560×820×1850	1680×920×2100		1600×1050×2100			1850×1050×2100
G.W/N.W	320/240 KG		350/260 KG	465/365 KG		530/420 KG			580/470 KG

LPWS-YDB Autoclave Sterilizer

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.With drying function, suitable dressing drying.

3.With over-temperature, over-pressure auto-protect device.

4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting.

6.The power will be cut-off automatically the water and alarm when the machine lacking water.

7.The chamber of the sterilizer is made of stainless steel.

8.With printer.

Technical data	LPWS-150YDB	LPWS-200YDB	LPWS-280YDB
Sterilizing chamber volume	150L φ440×1000mm	200L φ515×1000mm	280L φ600×1000mm
working pressure	0.22 MPa
working temperature	134℃
Adjustment of temperature	105℃ – 134℃
Time of sterilization	0-99 min
Time of drying	0-99 min
Heat average	≤± 2℃
Power	9KW/380V 50Hz	9KW/380V 50Hz	12KW/380V 50Hz
Dimension	1400×650×1600	1400×750×1700	1520×910×1900
Transport dimension	1560×820×1820	1560×910×1880	1680×1080×2100
G.W/N.W	430/340 KG	436/350 KG	570/462 KG

LPWS-YV Autoclave Sterilizer

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.With over-temperature, over-pressure auto-protect device.

3.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.

4.The safety valve will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting .

5.The power will be cut-off automatically cut-off and alarm when the machine lacking water.

6.The chamber of the sterilizer is made of stainless steel.

7.Touch screen colour display and with printer.

8.With drying function.

9.With vacuum pump

Technical data	LPWS-100YV	LPWS-150YV	LPWS-200YV	LPWS-300YV
Sterilizing chamber volume	100L φ440×670mm	150L Φ440×1000mm	200L Φ515×1000mm	300L Φ600×1080mm
working pressure	0.22 MPa
working temperature	134℃
Adjustment of temperature	115℃ – 134℃
Time of sterilization	0-99 min
Time of drying	0-99 min
Heat average	≤± 2℃
Power	10KW/AC380V 50Hz	10KW/AC380V 50Hz	10KW/AC380V 50Hz	13KW/AC380V 50Hz
Dimension	1400×660×1640	1400×660×1640	1400×750×1740	1520×850×1850
Transport dimension	1560×820×1820	1560×820×1820	1560×910×1880	1680×1080×2100
G.W/N.W	430/340 KG	440/350 KG	460/370 KG	580/470 KG
