Product Description

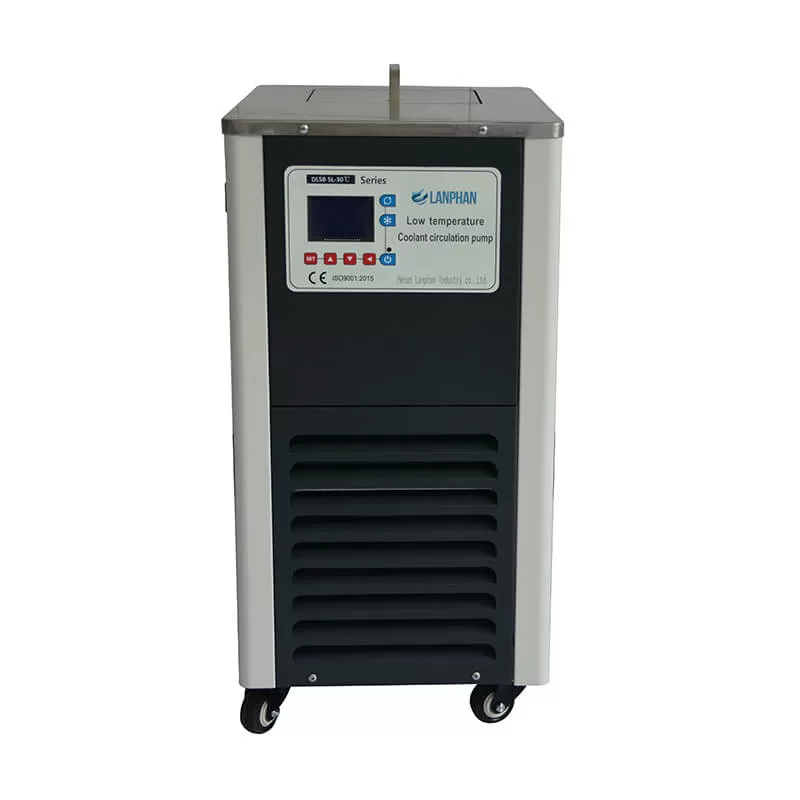

Chiller is also known as low temperature cooling water circulation pump, cryogenic pump, low temperature circulation pump, low temperature cooling circulation pump, etc. The water tank volume is 5L, and the minimum no-load temperature is between -15°C-123℃, and the optimum ambient temperature is from 5℃-25℃. The equipment adopts the PT100 temperature sensor, with a wide measuring range and excellent pressure resistance. And the equipment uses difluoromethane(R22) as the refrigerant, having a better cooling effect. Chiller is a low-temperature equipment that uses a compressor for mechanical refrigeration. On the basis of refrigeration, a water circulating pump is added to enable the cooled liquid to pass through the pipeline for external and internal circulation, and can provide low temperature liquid and low temperature bath. It can also be combined with a rotary evaporator, a vacuum freeze drying oven, a water circulating vacuum pump, a magnetic stirrer and the like to perform multi-functional chemical reaction operations and drug storage at a low temperature. Chiller can be used in laboratories, providing the cooling environment for small capacity of sample. It is especially suitable for chemical, biological and physical laboratories that need to maintain low temperature and normal temperature conditions. It is an essential equipment for medical and health, chemical industry, food industry, metallurgical industry, colleges and universities, scientific research, genetic engineering, polymer engineering and other fields. ( The large-capacity low-temperature coolant circulation pump can be customized according to user needs.)

Product structure

The chiller is mainly composed of cooling tank, discharge outlet, condenser, etc.



Features of Chiller

The large-capacity opening bath, integrated with the external circulation, can serve as a freezing tank and provide cooling liquid. The circulation system adopts stainless steel material, possessing the functions of corrosion and rust resistance, cryogenic liquid pollution prevention. It can be matched with a variety of instruments(rotary evaporators, fermentation tanks, chemical reactors, freeze-drying equipments, pharmaceuticalreactors, etc. Digital display of constant temperature and microcomputer temperature control, simple operation and eye-catching.

Parameters of Chiller

Product Name	Chiller
Product Model	DLSB 5l-120
Reservoir Volume（L)	7.49
Reservoir Dimension（mm)	210x210x170
No-load Minimum Temperature (℃）	-120
Cooling capacity (W)	110～3308
Total Power (W)	2455
Current (A)	11.2
Circulating Pump Power (w)	100
Circulating Pump Head (M)	6
External circulation interface (mm)	10
